Solenoid Control Valves

600X Features

600X Solenoid Control Valvess is a kind of self-acting valve with electric-magnetic valve as pilot valve. It is used in automatic control of feeding system and industrial system and its control reaction is quick and precise. It opens or closes pipeline system according to the electric signal to reach remote control operation. It can be used in large-scale electric operation system instead of gate valve and butterfly valve. Its close speed is adjustable and it can close stably without any pressure fluctuation.
Electric-magnetic valve is of AC 220 V or DC 24V. It can be normally open or normally close according to the site condition.

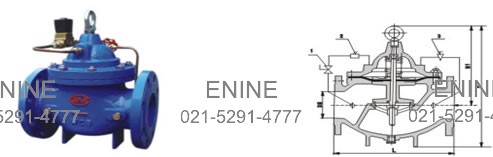

Solenoid Control Valves
Solenoid Control Valves

1. Small Ball Valve
2. Pilot Valve
3. Flow Controller
4. Needle Valve

J145X Features

J145X Solenoid Control Valvess is mounted on the pipeline of various supply systems, operated through an electric signal or manually to have the valves opened or closed.
a. Accurate and quick response to control.
b. An adjustable closing speed, the valve is closed stably without producing any pressure fluctuation.
c. About the solenoid valve: voltage: AC220V, DC24V, Options: explosion-proof N.O.N.C

Diaphragm actuated

Diaphragm actuated
1. Solenoid Pilot Valve
2. Needle Valve
3. Strainer
4. Small Ball Valve
5. Small Ball Valve

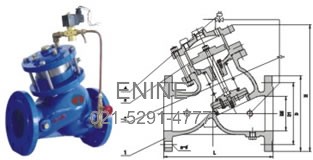

Piston actuated

Piston actuated
1. Body
2. Needle Valve
3. Line
4. Solenoid Valve

Technical Parameters

Nominal Pressure: 1.0, 1.6, 2.5MPa
Shell test pressure: 1.5, 2.4, 3.75MPa
Sealed test pressure : 1.1, 1.76, 2.75MPa
Suitable temperature: 80
Suitable medium: water, Sewage

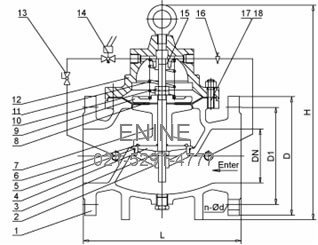

Materials

Materials: Solenoid Control Valves
Serial No. Part Material
1 Body Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
2 Seat 2Cr13 / SS 304 / SS 316
3 Stem 2Cr13 / SS 304 / SS 316
4 O-ring washer Cast Iron / WCB
5 O-ring NBR
6 O-ring NBR
7 Disc Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
8 Diaphragm Rubber
9 Diaphragm washer Cast Iron
10 Nut Bronze
11 Spring Spring Steel
12 Cover Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
13 Ball valve Bronze
14 Solenoid valve Bronze
15 Pilot socket Bronze
16 Needle valve Bronze
17 Stud Steel
18 Nut Steel

Dimensions

600X

DNmm 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700
L 180 180 180 203 203 235 280 360 400 455 585 650 800 860 915 980 1075 1230 1300
PN10 D 105 115 135 145 160 180 195 215 245 280 335 390 440 500 565 615 670 780 895
D1 75 85 100 110 125 145 160 180 210 240 295 350 400 460 515 565 620 725 840
PN16 D 105 115 135 145 160 180 195 215 245 280 335 405 460 520 580 640 705 840 910
D1 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 585 650 770 840
PN25 D 105 110 135 145 160 180 195 230 270 300 360 425 485 550 610 660 730 840 955
D1 75 85 100 110 125 145 160 190 220 250 310 370 430 490 550 600 660 770 875
H 342 342 342 395 395 405 430 510 560 585 675 730 760 840 910 1070 1135 1270 1460
H1 250 250 250 278 278 298 315 350 365 420 450 470 490 526 570 610 665 725 865

Note: Either elastic seat ring sealed gate valve or butterfly valve can be selected in the schematic of installation. Recommend to select the butterfly valve in case of DN350

J145X

DN L D D1 n-d H
1.0Mpa 1.6 Mpa 2.5 Mpa 1.0Mpa 1.6 Mpa 2.5 Mpa 1.0Mpa 1.6 Mpa 2.5 Mpa
50 205 165 165 165 125 125 125 4-18 4-18 4-18 320
65 216 185 185 185 145 145 145 4-18 4-18 8-18 367
80 250 200 200 200 160 160 160 8-18 8-18 8-18 400
100 320 220 220 235 180 180 190 8-18 8-18 8-22 452
125 365 250 250 270 210 210 220 8-18 8-18 8-22 522
150 415 285 285 300 240 240 250 8-22 8-22 8-26 592
200 500 340 340 360 295 295 310 8-22 12-22 12-26 696
250 605 395 405 425 350 355 370 12-22 12-26 12-26 810
300 698 445 460 485 400 410 430 12-22 12-26 12-30 943
350 787 505 520 555 460 470 490 16-22 16-26 16-30 1200
400 914 565 580 620 515 525 550 16-26 16-30 16-33 1230
450 978 615 640 670 565 585 600 20-26 20-30 16-36 1230
500 978 670 715 730 620 650 660 20-26 20-33 20-36 1270
600 1150 780 840 845 725 770 770 20-30 20-36 20-39 1600
700 1300 895 910 960 840 840 875 2430 24-36 24-42 1750
800 1450 1015 1025 1085 950 950 990 2433 24-39 24-48 1900

Typical Installation

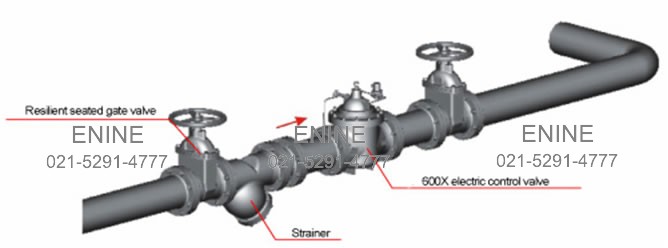

600X

Typical Installation of 600X

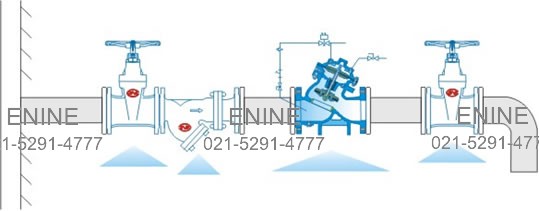

J145X

Typical Installation of J145X
