One-Piece (1PC) Cast Steel Floating Ball Valves

Features

Size: 1/2"~4"
Class: 150~300
One Piece Cast Steel Body
Floating Ball, Reduced Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design

Specifications

Design: ASME B16.34/API 608
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
Test: API 598
Fire Safe Test: API 607/API 6FA
Special: NACE MR-01-75

Materials

Materials of One-Piece (1PC) Cast Steel Floating Ball Valves
Materials of One-Piece (1PC) Cast Steel Floating Ball Valves

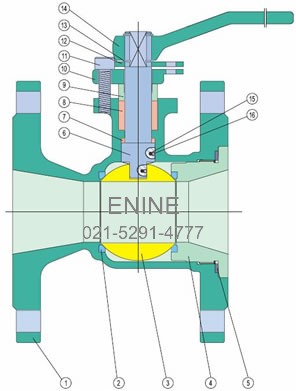

No. Part Material
1 Body ASTM A216-WCB, ASTM A351-CF8M, ASTM A352-LCC
2 Seat PTFE
3 Ball ASTM A105/ENP, ASTM A182-F316
4 Adapter ASTM A216-WCB,ASTM A351-CF8M, ASTM A352-LCC
5 * Body Gasket 304SS+Graphite,316SS+Graphite
6 Stem ASTM A276-410, ASTM A276-316
7 Thrust Washer PTFE
8 * Packing PTFE/Graphite
9 Gland ASTM A276-410, ASTM A276-316
10 Gland Flange ASTM A216-WCB,ASTM A351-CF8M,ASTM A352-LCC
11 Screw ASTM A193-B7, ASTM A193-B8, ASTM A320-L7M
12 Stop Plate Carbon Steel, Stainless Steel
13 Retainer Carbon Steel, Stainless Steel
14 Lever Carbon Steel
15 Antistatic Spring Stainless Steel
16 Steel Ball Stainless Steel

ASME Pressure Class 150 Lb-One-Piece (1PC)
PTFE Seated-Cast-Floating-Reduce Bore-Dimensions and Weights

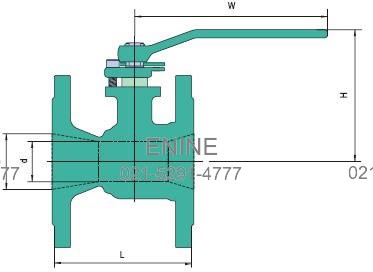

Dimensions of One-Piece (1PC) Cast Steel Floating Ball Valves
Size d D L H W Weight
In mm mm mm mm mm Kg
1/2 10 13 108 89 129 5.4
3/4 15 18 117 89 129 6
1 19 25 127 90 170 6.6
1-1/2 32 40 165 106 224 7.8
2 38 50 178 111 224 12
3 59 80 203 146 356 23
4 76 102 229 171 356 38

ASME Pressure Class 300 Lb-One-Piece (1PC)
PTFE Seated-Cast-Floating-Reduce Bore-Dimensions and Weights

Size d D L H W Weight
in mm mm mm mm mm Kg
1/2 10 13 140 89 129 6
3/4 15 18 152 89 129 6.6
1 19 25 165 90 170 7.2
1-1/2 32 40 191 106 224 13
2 38 50 216 111 224 18
3 59 80 283 160 356 36
4 76 102 305 186 506 54
