Three-Piece (3PC) Forged Floating Ball Valves

Features

Size: 1/2"~2"
Class: 800 / 1500
Three Pieces Forged Steel Body
Floating Ball, Full Bore
Anti-Static Device
Screwed and Socket Welded Ends
Blow-out Proof Stem

Design: ASME B16.34/BS 5351
Face to Face: Manufacturer Standard
End to End: Manufacturer Standard
Screwed End: ASME B1.20.1
Socket Welding & BW End: ASME B16.11
Test: API 598/ BS 6755
Fire Safe Test: API 597 / API 6FA

Materials

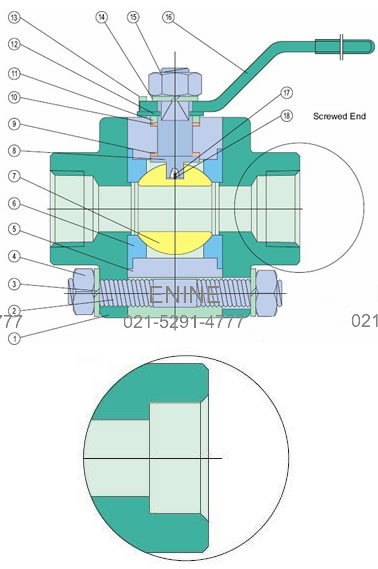

Materials of Three-Piece (3PC) Forged Floating Ball Valves
Materials of Three-Piece (3PC) Forged Floating Ball Valves
No. Part Material
1 Adapter ASTM A105, ASTM A182-F316, ASTM A350-LF2
2 Body Bolt ASTM A193-B7, ASTM A193-B8, ASTM A320-L7M
3 Spring Washer Carbon Steel, Stainless Steel
4 Body Nut ASTM A194-2H, ASTM A194-2HM, ASTM A194-8, ASTM A194-4
5 Body ASTM A105, ASTM A182-F316, ASTM A350-LF2
6 Seat PTFE
7 Ball ASTM A182-F304, ASTM A182-316, ASTM A182-F316
8 Stem ASTM A276-304, ASTM A276-316
9 Thrust Washer PTFE
10 * Stem Packing PTFE
11 Gland ASTM A276-410, ASTM A276-316
12 Stop Plate Carbon Steel
13 Stop Pin Carbon Steel, Stainless Steel
14 Spring Washer Carbon Steel, Stainless Steel
15 Lever Nut ASTM A194-2H, ASTM A194-2HM, ASTM A194-8, ASTM A194-4
16 Lever Carbon Steel
17 Antistatic Spring Stainless Steel
18 Steel ball Stainless Steel

ASME Pressure Class 800 / 1500 Lb-Screwed and Socket Welded Ends
PTFE Seated-Three-Piece (3PC)-Forged-Floating-Full Bore-Dimensions and Weights

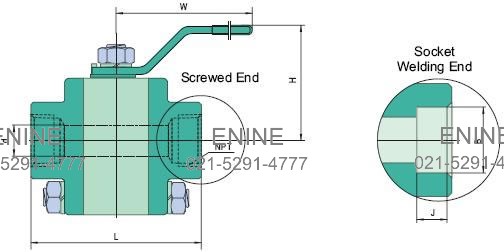

Dimensions and Weights of Three-Piece (3PC) Forged Floating Ball Valves
Size d L H W B J NPT Weight
in mm mm mm mm mm mm in Kg
1/2 14 92 65 130 21.8 9.6 1/2" 1.7
3/4 18 111 75 160 27.2 12.7 3/4" 2.5
1 24 127 80 220 33.9 12.7 1" 4.5
1-1/4 30 140 100 250 42.7 12.7 1-1/4" 7
1-1/2 38 152 110 250 48.8 12.7 1-1/2" 8.8
2 48 152 125 290 61.2 15.7 2" 10
