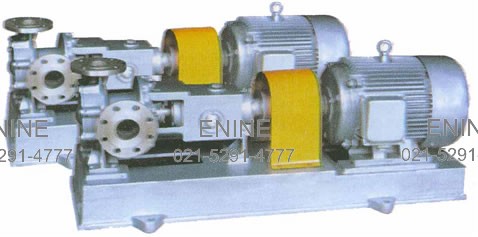

I Summary For Non-Leakage Chemical Process Pump
Model JF non-leakage-type chemical process pump series was ENINE in the early 2002 after continuous consummation and reformation on the basis of importation of newest foreign technologies of centrifugal pump and combination of the many years of production experience of our factory.
The mechanical sealing adopts negative pressure devices, which can be used for conveying of liquid for very long time under the continuously-increasing pressure and gradually-decreasing flow.
THE MECHANICAL SEALING IS NOT SUBJICT TO WORKONG PRESSURE, it is guaranteed that the mechanical sealing will never leak, so it is an ideal device for construction of civilized factory.
The model JF anti-corrosion pump series is a single-stage-single-suction cantilever-type centrifugal pump. Its mark, rated performance and size are conformed to the standards of Bb5662-1985, which is corresponding to ISO2858-1975. It is the same type as IH type promoted by the state.
Shaft seal: it can use mechanical seal, dynamic seal and packing seal, at the option of users.
II Technical Table For Non-Leakage Chemical Process Pump
Model | Speed r/min |
Capacity m3/h | Head m |
Speed m3/h | Head m |
Efficiency % | kw power |
motor power |
NPSH m |
JF50-32-160 | 1450 | 5~9 | 6.5~9.6 | 6.3 | 8 | 40 | 0.34 |
Select gravity of fact |
2.0 |
2900 | 10~15 | 25.6~33 | 12.5 | 32 | 46 | 2.37 | 2.0 | ||
JF50-32-250 | 1450 | 5~9 | 16~24 | 6.3 | 20 | 27 | 1.27 | 2.0 | |
2900 | 10~15 | 64~86 | 12.5 | 80 | 33 | 8.25 | 2.0 | ||
JF65-50-160 | 1450 | 10~15 | 6.5~9.6 | 12.5 | 8 | 51 | 0.53 | 2.0 | |
2900 | 20~30 | 25.6~33 | 25 | 32 | 57 | 3.82 | 2.0 | ||
JF65-50-160A | 2900 | 18~27 | 20.8~31.2 | 22.5 | 26 | 55 | 2.9 | 2.0 | |
JF65-40-200 | 1450 | 10~15 | 10~15 | 12.5 | 12.5 | 46 | 0.93 | 2.0 | |
2900 | 20~30 | 40~60 | 25 | 50 | 52 | 6.5 | 2.0 | ||
JF65-40-250 | 1450 | 10~15 | 16~21 | 12.5 | 20 | 39 | 1.75 | 2.0 | |
2900 | 20~30 | 64~85 | 25 | 80 | 46 | 11.84 | 2.0 | ||
JF65-40-250A | 2900 | 18~27 | 55~80 | 23.3 | 69 | 46 | 9.52 | 2.5 | |
JF65-40-315 | 1450 | 10~15 | 25.6~33 | 12.5 | 32 | 33 | 3.3 | 2.0 | |
2900 | 20~30 | 100~127 | 25 | 125 | 39 | 21.8 | 2.0 | ||
JF80-65-160 | 1450 | 20~30 | 6.4~10 | 25 | 8 | 62 | 0.88 | 2.3 | |
2900 | 40~60 | 29~35 | 50 | 32 | 67 | 6.5 | 2.3 | ||
JF80-65-160A | 2900 | 37~56 | 24~33 | 46 | 28 | 62 | 5.64 | 2.3 | |
JF80-50-200 | 1450 | 20~35 | 10~14 | 25 | 12.5 | 57 | 1.49 | 2.0 | |
2900 | 40~60 | 46~54 | 50 | 50 | 63 | 10.8 | 2.5 | ||
JF80-50-200A | 2900 | 37~56 | 34.5~46 | 46.5 | 43 | 61 | 8.9 | 2.5 | |
JF80-50-250 | 1450 | 20~30 | 16~21 | 25 | 20 | 52 | 2.62 | 2.5 | |
2900 | 40~60 | 72~87 | 50 | 80 | 57 | 19.11 | 2.5 | ||
JF80-50-315 | 1450 | 20~30 | 29~35 | 25 | 32 | 56 | 3.9 | 2.0 | |
2900 | 40~60 | 100~127 | 50 | 125 | 51 | 33.36 | 2.0 | ||
JF100-80-160 | 1450 | 40~60 | 6.4~9 | 50 | 8 | 69 | 1.58 | 3.4 | |
2900 | 70~120 | 26~35 | 100 | 32 | 73 | 11.9 | 2.5 | ||
JF100-80-160A | 2900 | 65~110 | 25~32 | 93 | 28 | 69 | 10.3 | 2.5 | |
JF100-65-200 | 1450 | 40~60 | 10~15 | 50 | 12.5 | 68 | 2.5 | 3.9 | |
1450 | 80~120 | 45~53 | 100 | 50 | 72 | 18.9 | 3.9 | ||
JF100-65-200A | 2900 | 64~120 | 35~46 | 93 | 43 | 71 | 15.3 | 3.9 | |
JF100-65-250 | 2900 | 40~60 | 16~22 | 50 | 20 | 63 | 4.3 | 3.6 | |
1450 | 70~130 | 70~84 | 100 | 80 | 65 | 33.5 | 3.6 | ||
JF100-65-250A | 2900 | 65~120 | 60~74 | 93 | 69 | 65 | 26.8 | 3.6 | |
JF100-65-250B | 2900 | 70~105 | 49~72 | 87 | 60.5 | 65 | 22.1 | 3.6 | |
JF100-65-315 | 2900 | 35~65 | 30~33 | 50 | 32 | 60 | 7.26 | 2.0 | |
JF125-100-250 | 1450 | 80~120 | 16~32 | 100 | 20 | 72 | 7.56 | 2.3 | |
1450 | 160~240 | 70~15 | 200 | 80 | 75 | 58 | 4.5 | ||
JF125-100-250A | 2900 | 160200~ | 52~54 | 180 | 65 | 72 | 44.3 | 4.5 | |
JF125-100-315 | 2900 | 80~120 | 28~50 | 100 | 32 | 67 | 13 | 2.0 | |
1450 | 160~240 | 96~15 | 200 | 125 | 70 | 97.2 | 5.2 | ||
JF125-100-315A | 2900 | 160~200 | 81~53 | 180 | 101 | 69 | 71.9 | 5.0 | |
JF125-100-400 | 2900 | 70~140 | 42~46 | 100 | 50 | 62 | 22 | 2.3 | |
JF150-125-250 | 1450 | 150~300 | 13~84 | 200 | 20 | 76.8 | 14 | 2.8 | |
JF150-125-315 | 1450 | 160~250 | 28~72 | 200 | 32 | 77 | 22.63 | 2.8 | |
JF150-125-315A | 1450 | 150~240 | 21~33 | 180 | 26 | 72 | 17.7 | 3.5 | |
JF200-150-250 | 1450 | 250~520 | 12~114 | 400 | 20 | 80 | 27.2 | 3.5 | |
JF200-150-315 | 1450 | 250~520 | 28~15 | 400 | 32 | 79 | 44.1 | 3.5 | |
JF200-150-400 | 1450 | 300~550 | 40~46 | 400 | 50 | 78 | 69.8 | 3.5 | |
JF200-150-400A | 1450 | 300~500 | 38~24 | 360 | 43 | 73 | 57.7 | 3.5 | |
JF300-250-400V | 1450 | 650~1000 | 24~85 | 800 | 32 | 79 | 88.2 | 3.5 | |
JF300-250-400IV | 1450 | 500~700 | 28~80 | 600 | 38 | 70 | 88.6 | 3.5 |
