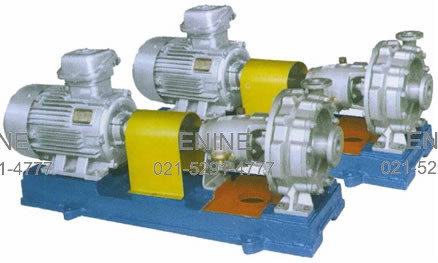

Partial Emission Pump

I Summary Partial Emission Pump

Partial Emission Pump
Partial Emission Pump

FXQ emission pump is single-stage single-suction partial emission pump. This pump is designed aiming at little capacity and high head, especially aiming at wearable solid mediums. Head is a constant value when capacity is from 0 to designed value. FXQ emission pump is especially suitable for matched with muzzle, also suitable for auto adjustment. FXQ emission pump is not sensitive to the clearance between impeller and front back pump cover, when clearance increased because wearable or corrosive, performances are not changeable. For its special design, there is no imbalance radial power when capacity departures designed value, which insures pump stable operation and bearing long life. Because impeller is whole open, adopt appropriate mechanical sealant other seal, there is no leakage when operation. ENINE FXQ emission pump can use frequency conversion activator, adjust performance convenience. It can connected with computer, pump is controlled with computer.

II Property Parameters Table For Partial Emission Pump

model Impellercode Impeller
diameter		 Inlet
diametermm		 Outlet
diametermm		 capacity
M3/h		 Head
m		 Shaft power
kw		 (kw)
Motor power
1.0 1.4 1.86
1FXQ-20 A 125 25 20 0.1-1.4 24 0.45 0.75 1.1 1.5
B 115 0.1-1.3 20
C 105 0.1-1.2 16
1FXQ-35 A 165 25 20 0.1-1.8 41 1.5 2.2 3 4
B 150 0.1-1.5 35
C 135 0.1-1.2 28
1FXQ-50 A 195 25 20 0.1-1.5 59 2.4 3 4 5.5
B 180 0.1-1.4 50
C 165 0.1-1.3 41
1FXQ-80 A 250 25 20 0.1-1.6 95 4.5 5.5 7.5 11
B 225 0.1-1.5 80
C 205 0.1-1.3 64
3FXQ-20 A 125 32 20 1-3.3 24 1.1 1.5 2.2 3
B 115 1-3 20
C 105 1-2.8 16
3FXQ-35 A 165 32 20 1-4.3 41 3 4 5.5 7.5
B 150 1-3.9 35
C 135 1-3.5 28
3FXQ-50 A 195 32 20 1-5 59 5.5 7.5 11 15
B 180 1-4.7 50
C 165 1-4.3 41
3FXQ-80 A 250 32 20 1-5 95 10.5 15 18.5 22
B 225 1-4.6 80
C 205 1-4.2 64
6FXQ-20 A 125 40 25 3-6.8 24 2.2 3 4 5.5
B 115 3-6.2 20
C 105 3-5.7 16
6FXQ-35 A 165 40 25 3-7.6 41 4.2 5.5 7.5 11
B 150 3-6.9 35
C 135 3-6.2 28
6FXQ-50 A 195 40 25 3-7.6 59 6.8 7.5 11 15
B 180 3-7 50
C 165 3-6.4 41
6FXQ-80 A 250 40 25 3-8 95 11 15 22 30
B 225 3-7.2 80
C 205 3-6.6 64
10FXQ-80 A 250 50 32 6-13.6 95 13.5 18.5 30 37
B 225 6-12.2 80
C 205 6-11 64
10FXQ-100 A 280 50 32 6-15 120 16.5 18.5 30 37
B 270 6-14 110
C 260 6-13 100
