Stainless Steel Chemical Centrifugal Pump

I Stainless Steel Chemical Centrifugal Pump Summary

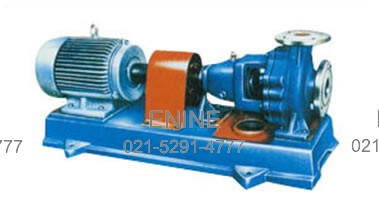

Stainless Steel Chemical Centrifugal Pump
Stainless Steel Chemical Centrifugal Pump

IH series stainless steel chemical centrifugal pump is single-stage and single-suction (axial suction ) corrosion Cresisting centrifugal pump, which pumps corrosive liquid without solid particle and glueyness similar to water. The temperature of medium is-20℃~150℃, if necessary, cooling measure can be taken to reach a higher temperature. ENINE yielding IH series stainless steel chemical centrifugal pump applies to petroleum, chemical, metallurgical, power,
paper making, foodstuff, pharmaceutical, and synthetic fiber industry, etc.

II Stainless Steel Chemical Centrifugal Pump's Range Of Properties

Capacity Q 0.3~400m3/h Power 0.55~90KW
Head H 5~125m Inlet diameter 32~200mm
Rotational speed n 2900,1450r/min Max operating persure 1.6MPa

III Stainless Steel Chemical Centrifugal Pump's Operating Property Table

Model Capacity Q
 Head
H(m)		 Speed
(r/min)		 Power P
(KW)		 Efficiency
(%)		 NPSHr
(m)
M3/h L/S Shaft Power Motor Power
IH32-20-125 3.2 0.88 20 2900 0.48 Select according
to
viscosity
and
granite
of
liquid		 35 5
IH32-20-160 3.2 0.88 32 0.93 30 3.5
IH32-20-200 3.2 0.88 50 1.62 27 4
IH32-20-250 3.2 0.88 80 4.1 17 4.5
IH40-25-125 6.3 1.74 20 0.66 52 5
IH40-25-160 6.3 1.74 32 1.53 36 3.5
IH40-25-200 6.3 1.74 50 2.52 34 3.5
IH40-25-250 6.3 1.74 80 5.3 26 4.5
IH50-32-125 7.5 2.08 23 2900 1.09 43 2
12.5 3.47 20 1.33 51 2
15 4.17 18 1.5 49 2.5
IH50-32-125A 6.8 1.89 18.8 2900 0.87 40 2
11.3 3.14 16.4 1.01 50 2
13.6 3.78 14.7 1.16 47 2.5
IH50-32-125 3.75 1.04 5.57 1450 0.16 36 1
6.3 1.74 5 0.19 45 1
7.5 2.08 4.5 0.21 44 1.2
IH50-32-125A 3.4 0.94 4.7 1450 0.13 33.3 1
5.7 1.59 4.1 0.149 43 1
6.8 1.89 3.7 0.163 42 1.2
IH50-32-160 7.5 2.08 34.5 2900 2.13 33 2
12.5 3.47 32 2.37 46 2
15 4.17 30 2.45 50 2.5
IH50-32-160A 6.8 1.89 28.5 2900 1.76 30 2
11.3 3.14 26.4 1.85 44 2
13.6 3.78 24.8 1.91 48 2.5
IH50-32-160 3.75 1.04 8.6 1450 0.3 29 1
6.3 1.74 8 0.34 40 1
7.5 2.08 7.5 0.36 43 1.2
IH50-32-160A 3.4 0.94 7.1 1450 0.253 25.9 1
5.7 1.59 6.6 0.277 37.1 1
6.8 1.89 6.2 0.28 41 1.5
IH50-32-200 7.5 2.08 51.8 2900 3.78 28 2
12.5 3.47 50 4.36 39 2
15 4.17 48 4.56 43 2.5
IH50-32-200A 6.8 1.89 42.7 2900 3.16 25 2
11.3 3.14 41 3.24 38 2
13.6 3.78 39.5 3.57 41 2.5
IH50-32-200 3.75 1.04 12.9 1450 0.57 23 1
6.3 1.74 12.5 0.65 33 1
7.5 2.08 12 0.68 36 1.2
IH50-32-200A 3.4 0.94 10.6 1450 0.488 20 1
5.7 1.59 10.3 0.516 31 1
6.8 1.89 9.9 0.54 34 1.2
IH50-32-250 7.5 2.08 82 2900 7.28 23 2
12.5 3.47 80 8.25 33 2
15 4.17 78.5 8.79 36.5 2.5
IH50-32-250A 7 1.94 71.9 2900 6.84 20 2
11.7 3.25 70 6.97 32 2
14 3.89 68.8 7.71 34 2.5
IH50-32-250B 6.6 1.83 63.6 2900 5.71 20 2
11 3.06 62 6.19 30 2
13.2 3.67 60.9 6.64 33 2.5
IH50-32-250 3.75 1.04 20.5 1450 1.23 17 1
6.3 1.74 20 1.27 27 1
7.5 2.08 6.2 1.29 31 1.2
IH50-32-250A 3.51 0.98 18 1450 1.12 15.4 1
5.9 1.64 17.5 1.125 25 1
7.02 1.95 17.2 1.18 27.9 1.2
IH65-50-125 15 4.17 21.3 2900 1.85 47 2
25 6.94 20 2.2 62 2
30 8.33 18.6 2.4 63 2.5
Model Capacity Q
 Head H
(m)		 Speed
(r/min)		 Head P
(KW)		 Efficiency
(%)		 NPSH
r (m)
M3/h L/S Shaft Power Motor Power
IH65-50-125A 13.6 3.78 17.6 2900 1.48 Select according
to
viscosity
and
granite
of
liquid		 44 2
22.7 6.31 16.5 1.67 61 2
27.3 7.58 15.4 1.91 59.9 2.5
IH65-50-125 7.5 2.08 5.4 1450 0.25 44 1
12.5 3.47 5 0.31 55 1
15 4.17 4.5 0.33 56 1.2
IH65-50-125A 6.8 1.89 4.5 1450 0.23 41 1
11.3 3.14 4.1 0.234 54 1
13.6 3.78 3.7 0.258 53 1.2
IH65-50-160 15 4.17 34.2 2900 3.18 44 2
25 6.94 32 3.82 57 2
30 8.33 30 4.15 59 2.5
IH65-50-160A 13.6 3.78 28.4 2900 2.56 41 2
22.7 6.31 26.5 2.93 56 2
27.3 7.58 24.8 3.29 56 2.5
IH65-50-160 7.5 2.08 8.55 1450 0.45 39 1
12.5 3.47 8 0.53 51 1
15 4.17 7.5 0.58 52.5 1.2
IH65-50-160A 6.8 1.89 7.09 1450 0.37 35.5 1
11.3 3.14 6.6 0.41 49.6 1
13.6 3.78 6.2 0.46 49.9 1.2
IH65-40-200 15 4.17 53.2 2900 5.3 41 2
25 6.94 50 6.55 52 2
30 8.33 47.6 7.27 53.5 2.5
IH65-40-200A 13.6 3.78 43.9 2900 4.28 38 2
22.7 6.31 41 5.07 50 2
27.3 7.58 39.3 5.73 51 2.5
IH65-40-200 7.5 2.08 13.3 1450 0.78 35 1
12.5 3.47 12.5 0.93 46 1
15 4.17 11.9 1.02 47.5 1.2
IH65-40-200A 6.8 1.89 11 1450 0.64 31.8 1
11.3 3.14 10.3 0.72 44 1
13.6 3.78 9.8 0.81 44.8 1.2
IH65-40-250 15 4.17 81.2 2900 9.76 34 2
25 6.94 80 11.84 46 2
30 8.33 78.4 12.8 50 2.5
IH65-40-250A 14 3.89 71 2900 8.73 31 2
23.4 6.5 74.8 10.6 45 2
28 7.78 68.6 11.13 47 2.5
IH65-40-250B 13.2 3.67 62.8 2900 7.29 31 2
22 6.11 61.8 8.42 44 2
26.4 7.33 53 8.45 45 2.5
IH65-40-250 7.5 2.08 20.3 1450 1.48 28 1
12.5 3.47 20 1.75 39 1
15 4.17 19.6 1.86 43 1.2
IH65-40-250A 7 1.94 17.8 1450 1.35 25 1
11.7 3.25 17.5 1.47 37.9 1
14 3.89 17.2 1.64 40 1.2
IH65-40-315 15 4.17 126.8 2900 18.5 28 2
25 6.94 125 21.8 39 2
30 8.33 124 23.8 42.5 2.5
IH65-40-315A 14 3.89 111.2 2900 18.1 25 2
23.4 6.5 109.5 18.36 38 2
28 7.78 108.8 22.12 40 2.5
IH65-40-315B 13.2 3.67 98 2900 14.69 24 2
22 6.11 96.5 15.63 37 2
26.4 7.33 95.9 17.67 39 2.5
IH65-40-315 7.5 2.08 32.4 1450 3 22 1
12.5 3.47 32 3.3 33 1
15 4.17 31.7 3.5 37 1.2
IH65-40-315A 7 1.94 28.4 1450 2.84 19 1
11.7 3.25 28 2.78 31 1
14 3.89 27.8 3.12 34 1.2
Model Capacity Q Head H
(m)		 Speed
(r/min)		 Power P
(KW)		 Efficiency
(%)		 NPSHr
(m)
M3/h L/S Shaft Power Motor Power
IH80-65-125 30 8.33 23.2 2900 3.16 Select according
to
viscosity
and
granite
of
liquid		 60 3
50 13.9 20 3.95 69 3
60 16.7 17.6 4.29 67 4
IH80-65-125A 27.2 7.56 19.1 2900 2.48 57 3
45.3 12.58 16.5 3.14 67 3
54.5 15.12 14.5 3.36 64 4
IH80-65-125 15 4.17 5.8 1450 0.44 54 1.5
25 6.94 5 0.53 64 1.5
30 8.33 4.4 0.58 62 1.7
IH80-65-125A 13.6 3.78 4.8 1450 0.349 51 1.5
22.6 6.28 4.1 0.407 62 1.5
27.2 7.56 3.6 0.452 59 1.7
IH80-65-160 30 8.33 36 2900 5.16 57 2
50 13.9 32 6.5 67 2.3
60 16.7 28.4 7.14 65 3.3
IH80-65-160A 27.2 7.56 29.7 2900 4.08 54 2
45.4 12.6 26.4 5.02 65 2.3
54.4 15.12 23.4 5.39 62 3.3
IH80-65-160 15 4.17 9 1450 0.74 50 1.1
25 6.94 8 0.88 62 1.1
30 8.33 7.2 0.95 62 1.3
IH80-65-160A 13.6 3.78 7.4 1450 0.58 47.3 1.1
22.7 6.31 6.6 0.68 60 1.1
27.2 7.56 5.9 0.74 59 1.3
IH80-50-200 30 8.33 55.2 2900 8.5 53 2
50 13.9 50 10.8 63 2.5
60 16.7 45.2 11.9 62 3.2
IH80-50-200A 27.2 7.56 45.4 2900 6.73 50 2
45.3 12.58 41 8.29 61 2.5
54.4 15.12 37.2 9.35 59 3.2
IH80-50-200 15 4.17 13.5 1450 1.25 44 1.1
25 6.94 12.5 1.49 57 1.1
30 8.33 11.5 1.6 58 1.3
IH80-50-200A 13.6 3.78 11.1 1450 1 41 1.1
22.7 6.31 10.3 1.135 56.1 1.1
27.2 7.56 9.5 1.28 55 1.3
IH80-50-250 30 8.33 84 2900 16 43 2.5
50 13.9 80 20.6 53 2.5
60 16.7 75 22.7 54 2.5
IH80-50-250A 28.14 7.82 73.55 2900 13.2 42.7 2.5
46.9 13.03 70.5 16.1 56 2.5
56.28 15.63 67.4 17.8 58.03 3
IH80-50-250B 26.4 7.33 64.8 2900 11.4 40.86 2.5
44 12.22 62.2 13.8 54 2.5
52.8 14.67 60 15 57.52 3
IH80-50-250 15 4.17 21 1450 2.15 40 1.2
25 6.94 20 2.72 50 1.2
30 8.33 18.8 3.01 51 1.5
IH80-50-250A 14.04 3.9 18.2 1450 1.66 42 1.2
23.4 6.5 17.6 2.25 50 1.2
28.08 7.8 16.7 2.63 48.5 1.5
IH80-50-315 30 8.33 128 2900 33.1 38 2.5
50 13.9 125 34.1 50 2.5
60 16.7 123 38 53 3
IH80-50-315A 28.14 7.82 113.4 2900 21.5 40.4 2
46.9 13.03 110 28.1 50 2
56.28 15.63 107.7 30 55 2.5
IH80-50-315B 26.4 7.33 100.5 2900 17 43.5 2
44 12.22 97 24.2 48 2
52.8 14.67 95 25 54.6 2.5
IH80-50-315 15 4.17 32.5 1450 3.59 37 1
25 6.94 32 4.54 48 1
30 8.33 31.5 4.95 52 1.2
Models Capacity Q Head H
(m)		 Speed
(r/min)		 Power P
(KW)		 Efficiency
(%)		 NPSH
r (m)
M3/h L/S Shaft Power Motor Power
IH80-50-315A 14.1 3.92 29.2 1450 3.52 Select according
to
viscosity
and
granite
of
liquid		 31.8 1
23.5 6.53 28.3 4.12 44 1
28.2 7.83 27.1 4.41 47.2 1.2
IH100-80-125 60 16.7 23.7 2900 5.96 65 3
100 27.8 20 7.47 73 4.2
120 33.3 16.3 7.72 69 4.8
IH100-80-125A 55 15.3 19.4 2900 4.68 62 3
91.8 25.5 16.8 5.9 71 4.2
109 30.5 13.7 6.12 67 4.8
IH100-80-160 60 16.7 37 2900 10.1 60 3.8
100 27.8 32 11.9 73 4.3
120 33.3 28 12.5 73 5
IH100-80-160A 54.6 15.17 30.6 2900 7.98 57 3.8
91 25.28 26.5 9.25 71 4.3
109.2 30.34 23.2 9.85 70.4 5
IH100-80-160 30 8.33 9.25 1450 1.3 58 2.1
50 13.9 8 1.58 69 2.1
60 16.7 7 1.68 68 2.3
IH100-80-160A 27.3 7.58 7.66 1450 1.03 55.3 2.1
45.5 12.64 6.6 1.22 67 2.1
54.6 15.16 5.8 1.32 65.3 2.3
IH100-65-200 60 16.7 56 2900 14.5 63 3.4
100 27.8 50 18.9 72 3.9
120 23.3 44 20.3 71 5.2
IH100-65-200A 54.6 15.17 46.5 2900 11.5 60.1 3.4
91 25.28 41.5 14.7 70 3.9
109.2 30.34 36.6 16 68 5.2
IH100-65-200 30 8.33 14 1450 1.91 60 1.8
50 13.9 12.5 2.5 68 1.8
60 16.7 11 2.85 63 2.1
IH100-65-200A 27.3 7.58 11.6 1450 1.51 57 1.8
45.5 12.64 10.3 1.83 66 1.8
54.6 15.16 9.1 2.25 60.1 2.1
IH100-65-250 60 16.7 88 2900 25.2 57 3
100 27.8 80 32 68 3.6
120 33.3 74 36.1 67 4.5
IH100-65-250A 56.11 15.58 77 2900 21.8 54 3
93.5 25.97 70 27.4 65 3.6
112.2 31.16 64.7 30.9 64 4.5
IH100-65-250B 52.7 14.64 67.9 2900 18.3 53.3 3
87.8 24.39 61.7 23.1 64 3.6
105.4 29.28 57 26 62.9 4.5
IH100-65-250 30 8.33 22 1450 3.6 50 1.8
50 13.9 20 4.3 63 1.8
60 16.7 18.5 4.7 64 2.1
IH100-65-250A 28 7.79 19.2 1450 3.12 47 1.8
45.5 12.64 17.4 3.53 61 1.8
56 15.58 16.2 4.06 60.9 2.1
IH100-65-315 60 16.7 132 2900 44.9 48 2.8
100 27.8 125 54.9 62 3.2
120 33.8 119 60.8 64 4.2
IH100-65-315A 56.1 15.58 115.5 2900 39.2 45 2.8
93.5 25.97 109 45.5 61 3.2
112.2 31.16 104 52.1 61 4.2
IH100-65-315B 52.7 14.64 102 2900 33.3 44 2.8
88 24.44 97 38.7 60 3.2
105.4 29.28 92 44 60 4.2
IH100-65-315 30 8.33 33.5 1450 6.2 44 1.6
50 13.9 32 7.5 58 1.6
60 16.7 30.5 8.3 60 1.9
IH100-65-315A 28 7.79 29.3 1450 5.46 41 1.6
46.5 12.92 28 6.33 56 1.6
56 15.58 26.7 7.15 57 1.9
Model Capacity Q Head H
(m)		 Speed
(r/min)		 Power P
(KW)		 Efficiency
(%)		 NPSHr
(m)
M3/h L/S Shaft Power Motor Power
IH125-80-160       2900   Select according
to
viscosity
and
granite
of
liquid
160 44.4 32 17.7 79 5.3

IH125-80-200       2900
160 44.4 50 28.3 77 4.3
IH125-80-250       2900
160 44.4 80 47.1 74 4

IH125-100-200 120 33.3 61 2900 29.3 68 4.5
200 55.6 50 35.4 77 5
240 66.7 41 38.3 70 5.8
IH125-100-200A 109.1 30.3 50.5 2900 23.1 64.9 4.5
182 50.56 41.4 27.4 75 5
218.2 60.6 34 30.1 67.1 5.8
IH125-100-200 60 16.7 15.25 1450 3.89 64 2.5
100 27.8 12.5 4.66 73 2.9
120 33.3 10.25 5.08 66 3.6
IH125-100-200A 54.7 15.2 12.6 1450 3.08 61 2.5
91 25.28 10.3 3.6 71 2.9
109.4 30.4 8.5 4.02 63 3.6
IH125-100-250 120 33.3 90 2900 47.4 62 3.7
200 55.6 80 58.1 75 4.5
240 66.7 73 64.5 74 5.5
IH125-100-250A 112 31.1 78 2900 40.3 59 3.7
186.5 51.8 69.5 48.35 73 4.5
224 62.2 63.5 54.5 71 5.5
IH125-100-250B 105.5 29.3 69 2900 34.2 58 3.7
175.5 48.75 61.5 41.4 71 4.5
211 58.6 56 46 69.9 5.5
IH125-100-250 60 16.7 22.5 1450 6.23 59 2
100 27.8 20 7.56 72 2.3
120 33.3 18.25 8.4 71 3
IH125-100-250A 56 15.56 19.5 1450 5.31 56 2
93 25.83 17.4 6.29 70 2.3
112 31.1 15.9 7.13 68 3
IH125-100-315 120 33.3 132.5 2900 65.3 52.6 4
200 55.6 125 94.6 72 4.5
240 66.7 120 103 75 5
IH125-100-315 60 16.7 33.5 1450 10.3 53 2.5
100 27.8 32 13.5 65 2.5
120 33.3 30.5 15.1 66 3
IH125-100-400 60 16.7 52 1450 17.7 48 2.5
100 27.8 50 24.8 55 2.5
120 33.3 48.5 25.5 62 3
IH125-100-400A 54.6 15.17 46 1450 13 44 2.5
91 25.28 41 19 51 2.5
109.2 30.34 36.6 19.6 58 3
IH150-125-250 120 33.3 24.8 1450 12.3 66 2.5
200 55.6 20 14.1 77 2.8
240 66.7 15 14.4 68 3.5
IH150-125-250A 109.1 30.3 20.5 1450 9.7 62.8 2.5
182 50.56 16.5 10.9 75 2.8
218.2 60.6 12.4 11.3 65.2 3.5
IH150-125-315 120 33.3 36.3 1450 18.8 63 2.5
200 55.6 32 23.2 75 2.8
240 66.7 28.5 25.9 72 3.8
IH150-125-315A 109.1 30.3 30 1450 14.85 60 2.5
182 50.56 25.5 17.32 73 2.8
218.2 60.6 23.5 20.23 69 3.8
IH150-125-400 120 33.3 57.5 1450 30.8 61 3
200 55.6 50 38.9 70 2.5
240 66.7 44 45.6 63 3
IH150-125-400A 109.1 30.3 47.5 1450 24.3 58 2
182 50.56 41 29.9 68 2.5
218.2 60.6 36.5 36.1 60 3
IH200-150-250 240 66.7 23 1450 23.3   2.5
400 111.1 20 29.4 74 2.8
460 127.8 18 30.6   3
IH200-150-315 240 66.7 35.6 1450 34.7 67 3
400 111.1 32 44.1 79 3.5
460 127.8 29.4 47.8 77 4
IH200-150-315A 218.2 60.6 29.4 1450 27.3 64 3
363 100.8 25.5 32.7 77 3.5
418 116.1 24.3 37.4 74 4
IH200-150-400 240 66.7 55.8 1450 54.4 67 3
400 111.1 50 69.8 78 3.5
460 127.8 47 78.5 75 4
IH200-150-400A 218.2 60.6 46 1450 42.7 64 3
363 100.8 41 53.3 76 3.5
418 116.1 38.8 61.3 72 4
Search
