Hydraulic Control Feeding Valve

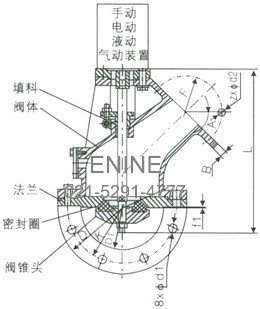

DF J745F Hydraulic Control Feeding Valve general drawing
Main Performance Parameters
| Model | PN |
Pressure Class(Lb) |
Suitable Temperature |
Suitable Medium |
Material |
| DF J745F-2.5 | 2.5 | 0.25 | ≤150 |
Body,conic valve head,flange Food,medicine and nitrc acid Austenitic stainless steel |
Sealing Ring |
Main Dimensions
| DN | L | D | K | D1 | f1 | 8×Φd1 | B | F | A | z×Φd2 |
| 125 | 464 | 340 | 295 | 240 | 2 | 8×Φ22 | 20 | 210 | 22.5 | 8×Φ16 |
| 80 | 362 | 285 | 240 | 180 | 2 | 8×Φ18 | 14 | 160 | 45 | 4×Φ18 |
