QY-2 Socket Type Ball Valve

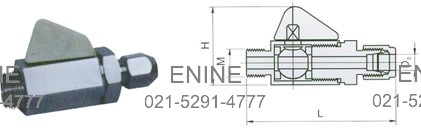

QY-2 Socket type ball valve diagram:

QY-2 Socket type ball valve diagram
QY-2 Socket type ball valve diagram

QY-2 Socket type ball valve performance criterion:

QY-2 Socket type ball valve is Applicable to:
Medium:Air,Oil article, Water.
Material: 304SS 316SS 20#,
Connection: Clamp connection

QY-2 Socket type ball valve connecting dimensions:

SPECIFICATION Do L H M NOMINAL PRESSURE
DN3 Φ6 80 ~40 G1/2 =1MPa
DN6 Φ8 84 ~40 ZG1/4 =1MPa
DN10 Φ10 90 ~40 ZG3/8 =1MPa
