Cl 150 Lb Rubber Seated Butterfly Valves

Materials

Body: Cast Iron, Ductile Iron, Stainless Steel etc.
Disc: Ductile Iron, Stainless Steel, Titanium Steel, Copper Alloy etc.
Seat: Nitrile Rubber (NBR), Chloroprene, Chlorosulfonated Polyethylene (Hypalon), Silicon, Fluoroelastomer (VITON)
Ethylene-Propylene-Diene Monomer (EPDM), Polytetrafluoroethylene (TPFE), Caoutchouc etc.

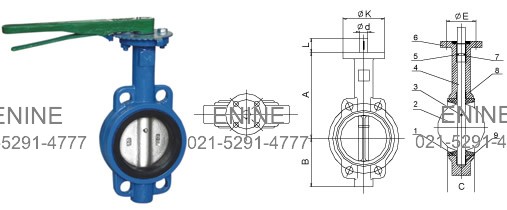

ASTM Pressure Classes 150-Wafer Ends- Middle Eccentric-Dimensions (mm)

Cl 150 Lb Rubber Seated Butterfly Valves
Cl 150 Lb Rubber Seated Butterfly Valves
DN L H HO A B 0.6MPa 1.0MPa 1.6MPa
Do n-d Do n-d Do n-d
50 43 63 235 270 110 110 4-14 125 4-18 125 4-18
65 46 70 250 270 110 130 4-14 145 4-18 145 4-18
80 46 83 275 270 110 150 4-18 160 8-18 160 8-18
100 52 105 316 270 110 170 4-18 180 8-18 180 8-18
125 56 115 340 310 110 200 8-18 210 8-18 210 8-18
150 56 137 376 310 110 225 8-18 240 8-22 240 8-22
200 60 164 430 353 150 280 8-18 295 8-22 295 12-22
250 68 206 499 353 150 335 12-18 350 12-22 355 12-26
300 78 230 570 380 150 395 12-22 400 12-22 410 12-26
