Flanged Rubber Seated Butterfly Valves

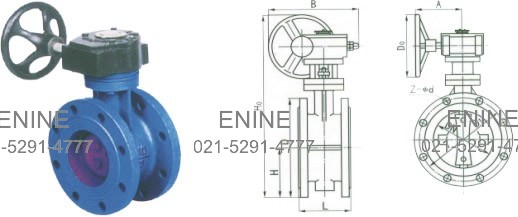

Dimensions (mm)

Flanged Rubber Seated Butterfly Valves
Flanged Rubber Seated Butterfly Valves
DN
(mm)		 PN
(MPa)		 Connection dimensions(mm)
L D1 D Zd
50 1.0/1.6 150 125 165 4-18
65 170 145 185 4-18
80 180 160 200 4-18/8-18
100 190 180 220 8-18
125 200 210 250 8-18
150 210 240 285 8-22
200 230 295 340 8-22/12-22
250 250 350/355 390/405 12-22/12-25
300 270 400/410 440/460 12-22/12-25
350 290 460/470 500/520 16-22/16-25
400 310 515/525 565/580 16-25/16-30
450 1.0 330 565 615 20-25
500 350 620 670 20-25
600 390 725 780 30-30
700 430 840 895 24-30
800 470 950 1010 24-34
900 510 1050 1110 28-34
1000 550 1160 1220 28-34
1200 630 1380 1450 32-41
1200 1.0/0.6 630 1380/1340 1450/1400 32-41/32-34
1400 710 1590/1560 1675/1620 36-48/36-34
1600 790 1820/1760 1915/1820 40-54/40-34
1800 870 2020/1970 2115/2045 44-54/44-41
2000 950 2230/2180 2325/2265 46-54/48-48
2200 0.6/0.25 1000 2390/2340 2745/2700 52-48/52-34
2400 1100 2600/2540 2685/2600 56-48/56-34
2600 1200 2810/2740 2900/2800 60-54/60-34
2800 1300 3020/2960 3110/3030 64-54/64-41
3000 1400 3220/3160 3310/3230 68-54/68-41
