SD41X Stretch Type Turbine Driven Flange Butterfly Valve

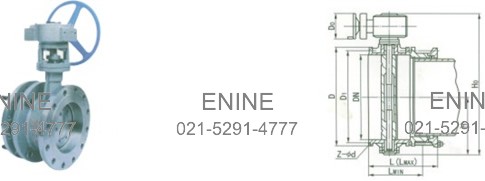

SD41X stretch type turbine driven flange butterfly valve structure drawing

ENSD41X Stretch Type Turbine Driven Flange Butterfly Valve
ENSD41X Stretch Type Turbine Driven Flange Butterfly Valve

SD41X stretch type turbine driven flange butterfly valve applications

Stretch Type Turbine Driven Flange Butterfly Valve can stretch or shrink along with the shaft within a certain range and also overcome the displacement due to non-concentricity in the pipelines butt-connection to the shaft within a certain range of angle, making great convenience for the installation and remove of both valve and pipeline. Suitable for the purifying pipeline in petroleum, electric power, food, beverage, medicine industries etc. and the pipeline in industrial environmental protection, water treatment, high buildings, water supply and drainage etc. to act as open-close, getting through and adjusting the mediums flow.

SD41X stretch type turbine driven flange butterfly valve product manufacture and acceptance standards

a. Standards of design GB12238API1609JIS B2064
b. Standard of flangeGB4216.4GB9115.8
c. Structural length GB12221 face. To. Face. GB12221
d. Testing standards: GB/T13927JB/T9092

SD41X stretch type turbine driven flange butterfly valve main technical parameter

DN(mm) 50~2000
PN(MPa) 0.6 1.0 1.6
Test pressure
(MPa)		 Strength test 0.9 1.5 2.4
Seal test 0.66 1.1 1.76
Applicable medium Water Oil Sea-water
Applicable temperature 80

SD41X stretch type turbine driven flange butterfly valve material for main parts

Name of parts Material
Body C.l, WCB
Wedge C.lNo28A
stem Stainless steel
Sealing ring NBR PTFE
Packing NBR PTFE V. washer

SD41X stretch type turbine driven flange butterfly valve main external and connection dimensions

DN
(mm)		 PN
(MPa)		 Main external and connection dimensions(mm)
L LMAX LMIN D1 D Zd H H0 D0
50 1.0/1.6 150 163 138 125 165 4-18 82.5 306 150
65 170 188 158 145 185 4-18 92.5 326 150
80 180 192 162 160 200 4-18/8-18 100 341 150
100 190 225 180 180 220 8-18 110 366 150
125 200 235 190 210 250 8-18 125 396 150
150 210 240 195 240 285 8-22 142.5 431 150
200 230 265 215 295 340 8-22/12-22 170 617 220
250 250 285 235 350/355 395/405 12-22/12-25 197.5 672 220
300 270 302 252 400/410 445/460 12-22/12-25 222.5 768 280
350 290 321 271 460/470 505/520 16-22/16-25 252.5 828 280
400 310 343 283 515/525 565/580 16-26/16-30 282.5 948 320
450 1.0 330 360 300 565 615 20-26 307.5 997 320
500 350 380 320 620 670 20-26 335 1053 320
600 390 425 365 725 780 20-30 390 1165 320
700 430 465 395 840 895 24-30 447.5 1380 400
800 470 510 430 950 1015 24-33 507.5 1500 400
900 510 560 460 1050 1115 28-33 557.5 1600 400
1000 550 600 500 1160 1230 28-36 615 1720 400
1200 570 680 580 1380 1455 32-39 727.5 1815 400
1400 640 780 710 1560 1630 36-39 854.2 1945 500
1600 720 860 790 1760 1830 40-36 973 2015 500
1800 800 940 870 1970 2045 44-39 1025 2235 500
2000 880 1020 950 2100 2125 48-42 1135 2565 500

Note: a. The seal testing pressure of the above butterfly valves is 1.6MPa/1.0MPa for DN50-DN800; 1.0MPa/0.6MPa for DN900-DN1000; 0.6MPa/0.25MPa for DN1200-DN2000. b. The connection dimensions for the above butterfly valves are set according to 1.0MPa standards; please make note when order in case of a special requirements. C. The driven ways are available with handle, turbine screw rod, pneumatic, electric etc.
