QY-3 Ball Valve for Gas Source Pipeline

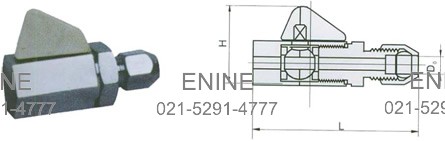

QY-3 ball valve for gas source pipeline diagram:
QY-2 Socket type ball valve diagram
QY-3 ball valve for gas source pipeline performance criterion:
QY-3 ball valve for gas source pipeline is Applicable to:
Medium:Air,
Make material:304SS, 316SS,20#,
Connection: Clamp connection
QY-3 ball valve for gas source pipeline connecting dimensions:
| SPECIFICATION | Do | L | H | NOMINAL PRESSURE |
| DN3 | Φ6 | 80 | ~40 | =1MPa |
| DN6 | Φ8 | 82 | ~40 | =1MPa |
| DN10 | Φ10 | 84 | ~40 | =1MPa |
