Model ZHB Slurry Pump
Summary
Model ZHB Slurry Pump
On the basis of imported equipment and technology, model ZHJ (slag) slurry pump is a new centrifugal pump which is independently designed and developed. According to flowing requirements of China Electronics Engineering Institute, etc, its hydraulic performance is designed. The hydraulic efficiency is up to or above that of similar products in 1990s of domestic and International market.The advantages of similar products are used for reference in structure. The flow contact parts are all made of high quality corrosion-resistant and abrasion
-resistant rubber or hard metal alloy lining. The pump casing and cover are in lining structure. The pump casing is made up of two parts. The stiffing seal type is interchangeable with dynamic seal type of auxiliary blade wheel (stopping seal attached). The dimension of overall installation is the same as that of similar products in the domestic and overseas markets.
Besides conveying slurry in the process of production of glass shell of CRT, the pump can be used in conveying slurry containing granules and corrosive materials, in the fields of wet metallurgy, petrochemical, mine, coal, building materials, light industry, paper-making, electro
-plate and electrolysis, three-waste treatment, etc.

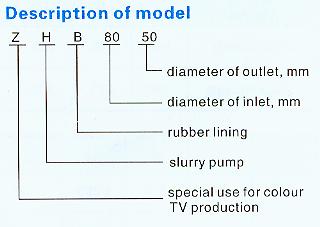

Description Of Model
Description Of Model
Table Of Property Parameters
| Model | Q(L/S)Capacity | H(m) Head | n(r/min)Speed | Motor power |
| ZHB80-50 | 12~60 | 5~40 | 900~2700 | according to service |
| ZHBl00-80 | 30~150 | 8~38 | 850~2100 | specific gravity matching |
| Model | A | B | C | D | E | F | G | H | I |
| ZHB80-50 | 140 | 208 | 235 | 18 | 250 | 300 | 165 | 122 | 280 |
| ZHBl00-80 | 160 | 243 | 270 | 20 | 310 | 370 | 186 | 153 | 335 |
| L | J | K | M | N | O | P | Q | S | T |
| 233 | 360 | 800 | Ф200 | Ф165 | Ф180 | Ф145 | R10 | R10 | 4 |
| 286 | 370 | 960 | Ф230 | Ф190 | Ф210 | Ф180 | R16 | R16 | 6 |
