Model ZHJ(slag) Slurry Pump

Summary

On the basis of imported equipment and technology, model ZHJ (slag) slurry pump is a new centrifugal pump which is independently designed and developed. According to flowing requirements of China Electronics Engineering Institute, etc, its hydraulic performance is designed. The hydraulic efficiency is up to or above that of similar products in 1990s of domestic and International market.The advantages of similar products are used for reference in structure. The flow contact parts are all made of high quality corrosion-resistant and abrasion -resistant rubber or hard metal alloy lining. The pump casing and cover are in lining structure. The pump casing is made up of two parts. The stiffing seal type is interchangeable with dynamic seal type of auxiliary blade wheel (stopping seal attached). The dimension of overall installation is the same as that of similar products in the domestic and overseas markets.
Besides conveying slurry in the process of production of glass shell of CRT, the pump can be used in conveying slurry containing granules and corrosive materials, in the fields of wet metallurgy, petrochemical, mine, coal, building materials, light industry, paper-making, electro -plate and electrolysis, three-waste treatment, etc.

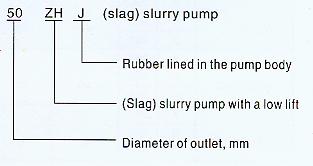

Description Of Model

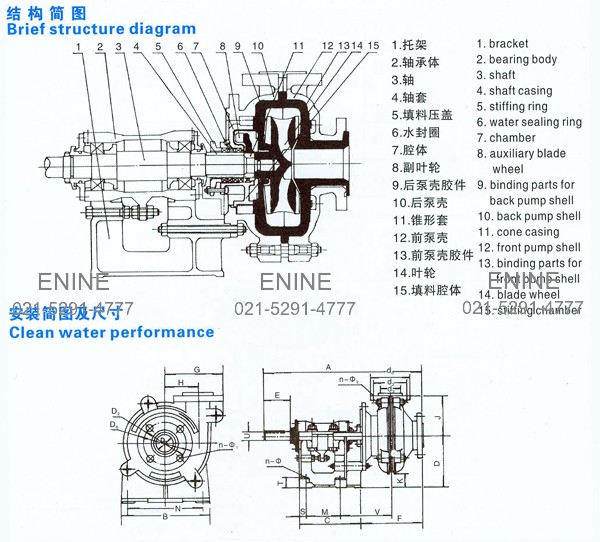

Brief tructure diagram And Clean water performance

Table Of Property Parameters

Model	Cleanwaterpertormance						(KW)maximumpowerpermissible




	QCapacity		HeadH(m)	Speedn(r/min)	%TiptopEfficiency	(NPSH)r(m)


	(m³/h)	(L/S)
25ZHJ	14~30	4~8.3	9.2~54	1400~3400	47	2~3	15
50ZHJ	34~74	9.5~21	15~40	1300~2100	69	2~3	30
80ZHJ	64~141	17.8~39.2	9.2~48.5	800~1850	65	2~3	30~60
100ZHJ	144~324	40~90	12~45	800~1350	65	2~3	60~120

Model	A	B	C	D	U	E	F	G	H	J	K	M	N
Model	A	B	C	D	U	E	F	G	H	J	K	M	N
25ZHJ	583	295	248	197	28	79	206	181	98	171	46	143	254
50ZHJ	768	406	311	254	42	121	297	238	138	210	71	175	356
	843	406	311	254	42	121					24	175	356
80ZHJ	943	492	364	330	60	164	352	292	149	262	100	213	432
100ZHJ	1021	492	364	330	64	164	421	406	229	338	11	213	432

Model	V	T	S	n-F	D0	D1	D2	n-F1	d0	d1	d2	n-F2	Weiaht
Model	V	T	S	n-F	D0	D1	D2	n-F1	d0	d1	d2	n-F2	Weiaht
25ZHJ	181	38	24	4-F14	152	38	114	4-F16	165	25	127	4-F16	91kg
50ZHJ	233	48	32	4-F19	216	76	178	4-F19	184	51	146	4-F19	191kg
	270	48	32										263kg
80ZHJ	279	64	38	4-F19	279	102	235	4-F22	229	76	191	4-F22	290kg
100ZHJ	318	64	38	4-F22	337	152	292	4-F22	279	102	235	4-F22	500kg

	Capacity(L/s)	HeadH(m)	Speedn(r/min)	ShaftPowerN(kw)	Efficiencyn(%)	(NPSH)c(m)



25ZHJ	2.79	39,31	2900	3.94	27.38	2.06
	3.61	29.23		4.19	33.25
	4.43	38.74		4.5	37.38
50ZHJ	10,97	19.07	1450	3.54	57.92	2.37
	12,47	18.69		3.81	59.91
	14.16	18.36		4.11	63.37
80ZHJ	17.71	30.74	1460	10.54	50.67	2.32
	22.22	30.2		12.03	54.72
	25.12	30.06		12.85	57.65
80ZHJ	42.71	22.89	1000	17.15	48.56	3.32
	43.06	22.2		18.03	52.2
	54.78	22.01		20.67	58.37
