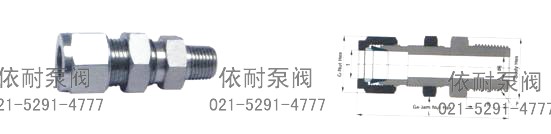

BMC卡套穿板式接头
| T-Tube O.D | PT-NPT Pipe Size (in) | Basic Ordering Number | E Minimum Opening | L | B | G | F | Gx |
| 6 6 6 6 | 1/8 1/4 3/8 1/2 | -BMC-06-01 -BMC-06-02 -BMC-06-03 -BMC-06-04 | 4.5 4.5 4.5 4.5 | 50 52 53 56 | 10 13 14 17 | 14 14 14 14 | 14 14 14 14 | 17 17 17 17 |
| 8 8 8 8 | 1/8 1/4 3/8 1/2 | -BMC-08-01 -BMC-08-02 -BMC-08-03 -BMC-08-04 | 4.5 6 6 6 | 52 54 55 59 | 10 13 14 17 | 17 17 17 17 | 14 14 14 14 | 17 17 17 17 |
| 10 10 10 10 | 1/8 1/4 3/8 1/2 | -BMC-10-01 -BMC-10-02 -BMC-10-03 -BMC-10-04 | 4.5 6 7.5 7.5 | 52 55 55 58 | 10 13 14 17 | 19 19 19 19 | 17 17 17 17 | 19 19 19 19 |
| 12 12 12 12 | 1/8 1/4 3/8 1/2 | -BMC-12-01 -BMC-12-02 -BMC-12-03 -BMC-12-04 | 4.5 4.5 7.5 9.5 | 57 60 62 64 | 10 13 14 17 | 22 22 22 22 | 19 19 19 19 | 22 22 22 22 |
| 英制 | ||||||||
| 1/4 1/4 1/4 | 1/4 3/8 1/2 | -BMC-2-02 -BMC-2-03 -BMC-2-04 | 4.5 4.5 4.5 | 52 53 56 | 13 14 17 | 14 14 14 | 14 14 14 | 17 17 17 |
| 3/8 3/8 3/8 | 1/4 3/8 1/2 | -BMC-3-02 -BMC-3-03 -BMC-3-04 | 6 6 6 | 55 55 58 | 13 14 17 | 19 19 19 | 17 17 17 | 22 22 22 |
| 1/2 1/2 1/2 | 1/4 3/8 1/2 | -BMC-4-02 -BMC-4-03 -BMC-4-04 | 9.5 9.5 9.5 | 60 62 64 | 13 14 17 | 22 22 22 | 19 19 19 | 24 24 24 |
订购注意事项：
BMC卡套穿板式接头产品电子样本所涵盖的参数表、性能表、尺寸表、图片、文字描述等信息，仅为上海依耐BMC卡套穿板式接头说明书的一部分，供选型参考之用，详细产品说明书、以及CAD图纸、安装图、尺寸图等请来电索取。由于编辑水平有限，错误和不妥之处在所难免，真诚希望您批评指正。
