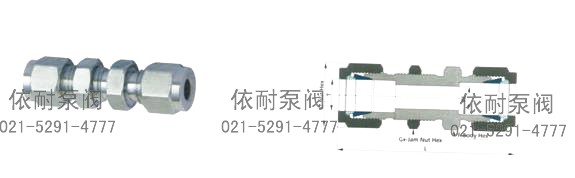

BU卡套穿板式对接
| T-Tube O.D | Basic Ordering Number | E Minimum Opening | L | G | F | Cx |
| 6 | -BU-06 | 4.5 | 58 | 14 | 14 | 17 |
| 8 | -BU-08 | 6 | 60 | 17 | 17 | 19 |
| 10 | -BU-10 | 7.5 | 63 | 19 | 19 | 22 |
| 12 | -BU-12 | 9.5 | 70 | 22 | 22 | 24 |
| 15 | -BU-15 | 11 | 71 | 27 | 24 | 27 |
| 16 | -BU-16 | 13 | 73 | 27 | 27 | 30 |
| 18 | -BU-18 | 14 | 76 | 30 | 27 | 30 |
| 20 | -BU-20 | 16 | 80 | 32 | 30 | 32 |
| 25 | -BU-25 | 21 | 90 | 40 | 34 | 34 |
| 英 制 | ||||||
| 1/4 | -BU-2 | 4.5 | 58 | 14 | 14 | 17 |
| 3/8 | -BU-3 | 6 | 63 | 19 | 17 | 19 |
| 1/2 | -BU-4 | 9.5 | 70 | 22 | 19 | 22 |
| 3/4 | -BU-6 | 14 | 80 | 32 | 30 | 32 |
订购注意事项：
BU卡套穿板式对接产品电子样本所涵盖的参数表、性能表、尺寸表、图片、文字描述等信息，仅为上海依耐BU卡套穿板式对接说明书的一部分，供选型参考之用，详细产品说明书、以及CAD图纸、安装图、尺寸图等请来电索取。由于编辑水平有限，错误和不妥之处在所难免，真诚希望您批评指正。
