Class 150, 300, 600 Lb Cast Steel Gate Valves

Materials

Materials of Cl 150 Lb Cast Steel Gate Valves

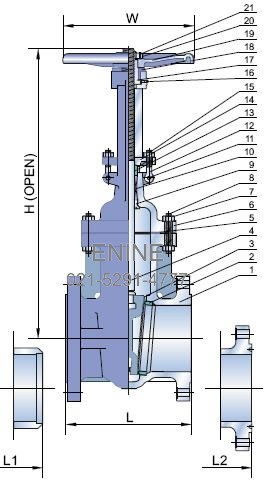

Structure of Cl 150 Lb Gate Valves
No. Parts Materials
1 Body ASTM A216 GR.WCB
2 Seat Ring ASTM A105+Stellite Faced
3 Disc ASTM A216 GR.WCB+13Cr Faced
4 Stem ASTM A182 GR.F6
5 Gasket Soft Iron + Graphite
6 Bonnet ASTM A216 GR.WCB
7 Bonnet Bolt Nuts ASTM A194 GR.2H
8 Bonnet Bolts ASTM A193 GR.B7
9 Backseat Bushing ASTM A276 Type 410
10 Stem Packing Braided Graphite & Die formed Graphite Ring
11 Eyebolt Pins Carbon Steel
12 Gland Eyebolts ASTM A307 GR.B
13 Gland ASTM A276 Type 410
14 Gland Flange ASTM A216 GR.WCB
15 Eyebolt Nuts ASTM A194 GR.2H
16 Grease Nipple Carbon Steel
17 Stem Nut ASTM A439 GR.D-2
18 Retaining Nut Carbon Steel
19 Hand wheel Ductile Iron
20 Hand wheel Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke ASTM A216 GR.WCB
23 Yoke Pan Bolt ASTM A194 GR.2H
24 Nuts Yoke Pan Bolts ASTM A193 GR.B7
25 Bearing Steel
26 Lantern Ring on Request ASTM A276 Type 410
Materials of Cl 300 Lb Cast Steel Gate Valves

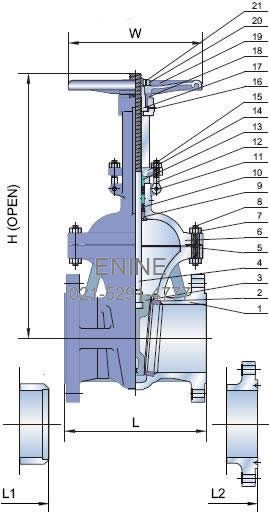

Structure of Cl 300 Lb Gate Valves
Materials of Cl 600 Lb Cast Steel Gate Valves

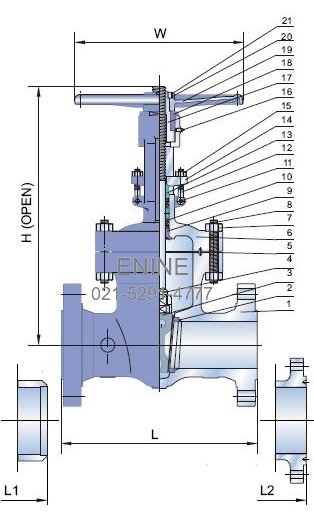

Structure of Cl 600 Lb Gate Valves

ASME Pressure Class 150 Lb-Cast Steel body-Flanged Ends
Metal Seated-Handwheel or Gear Operator-Dimensions and Weights

Dimensions and Weights: Gear Standard for 26" & Larger
Dimensions and Weights: Bearing for 16" & Larger
Dimensions and Weights: Yoke for 14" & Larger
SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 32 36
  mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 750 800 900
L in 7.00 7.5 8 9 10.5 11.5 13 14 15 16 17 18 20 24 24 28 28
  mm 178 191 203 229 267 292 330 356 381 406 432 457 508 610 610 711 711
L1 in 8.50 9.5 11.12 12 15.88 16.5 18 19.75 22.5 24 26 28 32 36 36 38 40
  mm 216 241 283 305 403 419 457 502 572 610 660 711 813 914 914 965 1016
L2 in 7.50 8 8.5 9.5 11 12 13.5 14.5 15.5 16.5 17.5 18.5 20.5 - - - -
  mm 191 203 216 241 279 305 343 368 394 419 445 470 521 - - - -
H in 15.31 17.28 19.69 23.43 30.59 38.39 45.67 54.72 61.22 71.30 82.80 90.55 102.72 130.98 141.97 145.98 154.49
  mm 389 439 500 595 777 975 1160 1390 1555 1811 2303 2300 2609 3327 3606 3708 3924
W in 8 8 10 10 14 14 16 18 22 24 25 27 30 24 24 24 24
  mm 200 200 250 250 350 350 400 450 560 600 640 680 760 610 610 610 610
Weight RF kg 17 23 29 47 80 129 192 287 410 571 720 1170 1466 1931 2380 2490 3600

ASME Pressure Class 300 Lb-Cast Steel body-Flanged Ends
Metal Seated-Handwheel or Gear Operator-Dimensions and Weights

Dimensions and Weights: Yoke for 12" & Larger
Dimensions and Weights: Bearing for 10" & Larger
Dimensions and Weights: Lantern Ring on Request
Dimensions and Weights: Gear Standard for 18" & Larger
NPS d in 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20
mm 51 64 76 102 127 152 203 254 305 337 387 432 483
L-L1 (RF-BW) in 8.50 9.50 11.12 12.00 15.00 15.88 16.50 18.00 19.75 30.00 33.0 36.00 39.00
mm 216 241 283 305 381 403 419 457 502 762 838 914 991
L2 (RTJ) in 3.12 10.12 11.74 12.62 15.62 16.50 17.12 18.62 20.37 30.62 33.62 36.62 39.75
mm 232 257 298 321 397 419 435 473 518 778 854 930 1010
H (open) in 16.42 18.11 20.71 25.59 27.32 32.44 38.86 46.93 56.34 61.38 69.21 76.46 84.45
mm 417 460 526 650 694 824 987 1192 1431 1559 1758 1942 2145
W in 7.87 9.84 9.84 9.84 11.81 13.78 17.72 19.69 22.05 18.11 18.11 24.02 24.02
mm 200 250 250 250 300 350 450 500 560 460 460 610 610
WT (Kg) BF 30 39 55 83 92 137 240 333 536 699 1010 1205 1720
BW 26 34 47 68 77 118 195 271 432 595 848 1025 1460

ASME Pressure Class 600 Lb-Cast Steel body-Flanged Ends
Metal Seated-Handwheel or Gear Operator-Dimensions and Weights

Dimensions and Weights: Yoke for 8" & Larger
Dimensions and Weights: Bearing for 6" & Larger
Dimensions and Weights: Lantern Ring on Request
Dimensions and Weights: Gear Standard for 14" & Larger
NPS d in 2 2-1/2 3 4 6 8 10 12 14 16 18 20
mm 51 64 76 102 152 200 248 298 327 375 419 464
L-L1 (RF-BW) in 11.50 13.00 14.00 17.00 22.00 26.00 31.00 33.00 35.00 39.00 43.00 47.00
mm 292 330 356 432 559 660 787 838 889 991 1092 1194
L2 (RTJ) in 11.62 13.12 14.12 17.12 22.12 26.12 21.12 33.12 35.12 39.12 43.12 47.25
mm 295 333 359 435 562 664 791 841 892 994 1095 1200
H (open) in 16.81 18.62 21.18 25.87 34.33 43.35 50.35 58.50 64.69 70.79 82.72 88.94
mm 427 473 538 657 872 1102 1279 1486 1643 1798 2101 2259
W in 9.84 9.84 11.81 13.78 19.69 22.05 28.35 24.02 24.02 24.02 24.02 29.92
mm 250 250 300 350 500 560 720 610 610 610 610 760
WT (Kg) BF 41 58 88 131 253 413 623 784 1288 1820 2150 2540
BW 35 50 68 104 208 328 496 637 1120 1448 1828 2201

Features

Outside Screw and Yoke (OS & Y), Rising Stem
Bolted Bonnet
Flexible Wedge (2" Solid)
Extended Bonnet for Cryogenic Services
By Pass on Request
Locking Device Optional

Specifications

Design: ASME B16.34/API 600
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5/B16.47
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75
