50/55 L/S Xbc Type Diesed Engine Fire Pump

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC3.9/50-100 50 0.39 31.6 1500 70 2.5
XBC5.6/50-100 0.56 1800
XBC6.1/50-100 50 0.61 58.8 1500 70 2.5
XBC8.6/50-100 50 0.86 73.5 1500 70 2.5
XBC11.0/50-100 50 1.10 88.3 1500 70 2.5
XBC4.7/55-100 55 0.47 40.4 1500 69 2.5
XBC6.7/55-100 0.67 1800
XBC7.6/55-100 55 0.76 73.5 1500 69 2.5
XBC10.5/55-100 55 1.05 88.3 1500 69 2.5

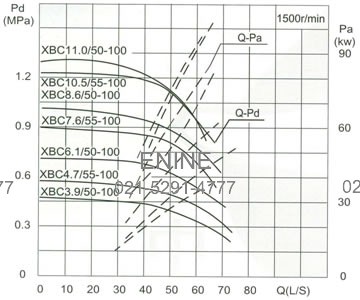

Capacity Drawing
Capacity:50/55 L/S Pressure:0.39-1.05MPa

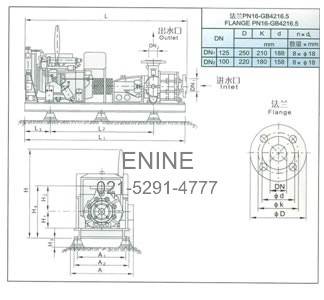

Structure Of 50/55 L/S Xbc Type Diesed Engine Fire Pump
Structure Of 50/55 L/S Xbc Type Diesed Engine Fire Pump

II 50/55 L/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC3.9/50-100
5.6		 280 400 133 800 920 1803 1675 1025 300 445 505 - JGD4 4 583
XBC6.1/50-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD4 4 1187
XBC8.6/50-100 280 400 133 800 1205 2791 2000 1350 300 694 800 777 JGD4 4 1261
XBC11.0/50-100 280 400 133 800 1355 2556 2420 1770 300 694 800 795 JGD4 4 1551
XBC4.7/55-100
6.7		 280 400 133 800 2040 2260 2400 1750 300 445 505 690 JGD4 4 753
XBC7.5/55-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD4 4 1187
XBC10.5/55-100 280 400 133 800 1355 2556 2420 1770 300 694 800 795 JGD4 4 1551
