70/80 L/S Xbc Type Diesed Engine Fire Pump

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

I Performance Data


Type
Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC3.4/70-125 70 0.34 34.3 1500 72 4.5
XBC5.8/70-125 70 0.58 58.8 1500 72 4.5
XBC8.6/70-125 70 0.86 88.3 1500 72 4.5
XBC4.5/80-125 80 0.45 58.8 1500 72 4.5
XBC7.6/80-125 80 0.76 88.3 1500 72 4.5

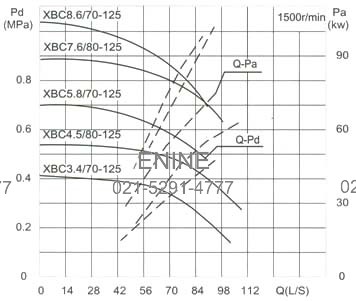

Capacity Drawing
Capacity:70/80 L/S Pressure:0.34-0.76MPa
Structure Of 70/80 L/S Xbc Type Diesed Engine Fire Pump
Structure Of 70/80 L/S Xbc Type Diesed Engine Fire Pump

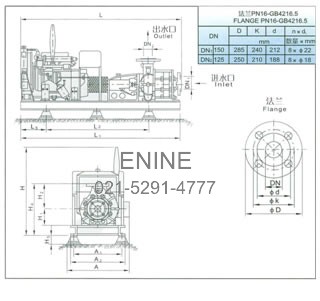

II 70/80 L/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC3.4/70-125 280 430 133 830 930 1817 1765 1113 300 445 505 - JGD4 4 643
XBC5.8/70-125 280 430 133 830 1215 2204 2004 1354 300 694 800 777 JGD4 4 1214
XBC8.6/70-125 280 430 133 830 1365 2434 2344 1694 300 694 800 795 JGD4 4 1504
XBC4.5/80-125 280 430 133 830 1215 1944 1874 1224 300 694 800 777 JGD4 4 1143
XBC7.6/80-125 280 430 133 830 1365 2434 2344 1694 300 694 800 795 JGD4 4 1504
